An Injection Assembly typically for use with High Pressure Access Systems consists of an Access Fitting body with a side Tee through which the fluid transfer takes place. The Tee may be threaded or welded. Welded Tees are either flanged or buttweld nipples. Threaded Tees depend on an NPT tapped hole on the fitting body. The Tee size is rated depending on the injection rate and the injected chemical's viscosity.
flange type Access fitting injection quill
- Description
- Image
- 3D
An Injection Assembly typically for use with High Pressure Access Systems consists of an Access Fitting body with a side Tee through which the fluid transfer takes place. The Tee may be threaded or welded. Welded Tees are either flanged or buttweld nipples. Threaded Tees depend on an NPT tapped hole on the fitting body. The Tee size is rated depending on the injection rate and the injected chemical's viscosity.
.png)

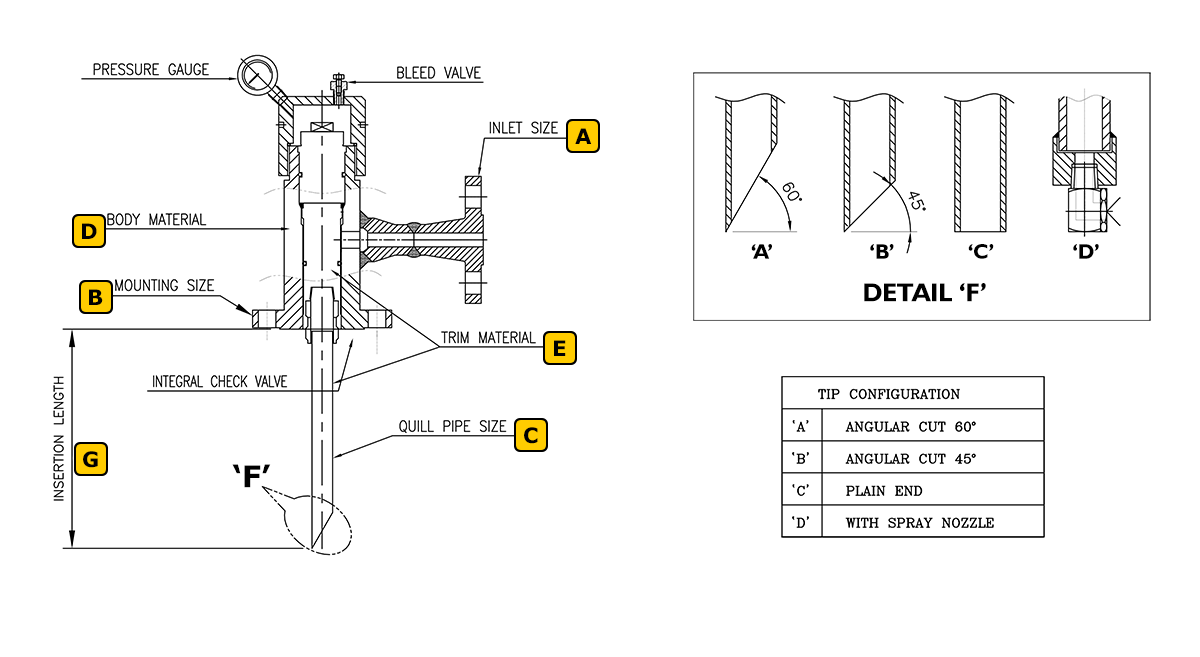

Sample part no. AFI-150-A-B-C-D-E-F
| MODEL
NO. |
INLET
SIZE (A) |
MOUNTING
SIZE (B) |
QUILL PIPE
SIZE (C) |
BODY
MATERIAL (D) |
TRIM
MATERIAL ( E) |
TIP
CONFIGURATION (F) |
INSERTION
LENGTH (G) |
EQUIPMENT
TESTING |
MATERIAL
TESTING |
|---|---|---|---|---|---|---|---|---|---|
| AFI-150 | 1/2" TO 2" | 1+1/2" or 2" or 3" | 1/4"NB / 1/2"NB/ 3/4"NB | SPECIFY | SPECIFY | SPECIFY | SPECIFY | HYDRO TEST | NACE 0175 |
| AFI-300 | 1/2" TO 2" | 1+1/2" or 2" or 3" | 1/4"NB / 1/2"NB/ 3/4"NB | PICKLING & PASSIVATION | HIC | ||||
| AFI-600 | 1/2" TO 2" | 1+1/2" or 2" or 3" | 1/4"NB / 1/2"NB/ 3/4"NB | PMI TEST | IMPACT TEST | ||||
| AFI-900 | 1/2" TO 2" | 1+1/2" or 2" or 3" | 1/4"NB / 1/2"NB/ 3/4"NB | LIQUID PENETRANT TEST | IGC | ||||
| AFI-1500 | 1/2" TO 2" | 1+1/2" or 2" or 3" | 1/4"NB / 1/2"NB/ 3/4"NB | RADIOGRAPHIC TEST | SCC | ||||
| AFI-2500 | 1/2" TO 2" | 1+1/2" or 2" or 3" | 1/4"NB / 1/2"NB/ 3/4"NB | ULTRASONIC TEST | |||||
| PNEUMATIC TEST | |||||||||
| HEAT TREATMENT |
